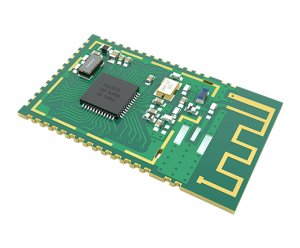

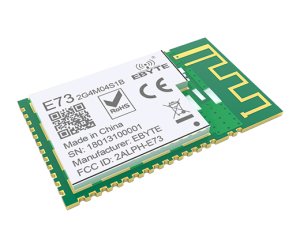

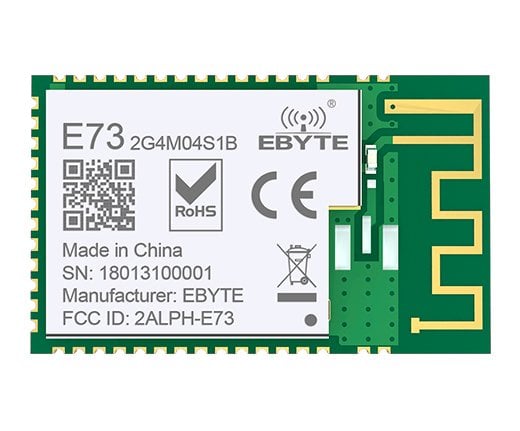

Bluetooth 5.0 nRF52832 EBYTE 2.4Ghz E73-2G4M04S1B IPEX PCB
| RF Parameter | Value |
Remark |
| Working frequency |
2379~2496 MHz |
Default: 2.4GHz (32MHz oscillator) |
| Transmitting power | 4 dBm |
About 2.5mW |
| Receiving sensitivity | -95 dBm |
Air data rate: 1Mbps |
| Air data rate |
1Mbps, 2Mbps |
Default: 1Mbps |
| Test distance | 100m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 1Mbps |
| Hardware Parameter | Value |
Remark |
|
IC |
nRF52832-QFAA/QFN48 |
- |
|
FLASH |
512 KB |
- |
|
RAM |
64 KB |
- |
|
Core |
ARM® Cortex™ -M4F |
- |
|
Size |
17.5 * 28.7 mm |
- |
|
Antenna type |
PCB |
- |
|
Communication interface |
I/O |
- |
|
Package |
SMD |
- |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
1.8 | 3.3 | 3.6 | V | |
| Communication level | 1.8 | 3.3 | 3.6 | V | |
| Transmitting current |
13 | 14 | 15 | mA | 4dBm（2.5mW） |
| Receiving current |
4 |
5 | 6 | mA | |
| Sleep current |
1 |
2 | 3 | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
|
| Pin No |
Pin item | Pin direction | Pin application |
| 0 | GND | Input |
Ground electrode, connect to reference ground of power |
| 1 | GND | Input |
Ground electrode, connect to reference ground of power |
| 2 | GND | Input |
Ground electrode, connect to reference ground of power |
| 3 | DEC2 | - |
MCU GPIO |
| 4 | DEC3 | - |
MCU GPIO |
| 5 | P0.25 | Input/Output |
MCU GPIO |
| 6 | P0.26 | Input/Output |
MCU GPIO |
| 7 | P0.27 | Input/Output |
MCU GPIO |
| 8 | P0.28 | Input/Output |
MCU GPIO |
| 9 | P0.29 | Input/Output |
MCU GPIO |
| 10 | P0.30 | Input/Output |
MCU GPIO |
| 11 | P0.31 | Input/Output |
MCU GPIO |
| 12 | DEC4 | - |
MCU GPIO |
| 13 | DCC |
- |
MCU GPIO |
| 14 | DEC1 | - |
MCU GPIO |
| 15 | GND | Input |
Ground electrode, connect to reference ground of power |
| 16 | VCC | Input |
Power supply 1.8 ~ 3.6V DC（Note: The voltage higher 3.6V is forbidden） |
| 17 | P0.02 | Input/Output |
MCU GPIO |
| 18 | P0.03 | Input/Output |
MCU GPIO |
| 19 | P0.04 | Input/Output |
MCU GPIO |
| 20 | P0.05 | Input/Output |
MCU GPIO |
| 21 | P0.06 | Input/Output |
MCU GPIO |
| 22 | P0.07 | Input/Output |
MCU GPIO |
| 23 | P0.08 | Input/Output |
MCU GPIO |
| 24 | P0.09 | Input/Output |
MCU GPIO |
| 25 | P0.10 | Input/Output |
MCU GPIO |
| 26 | P0.11 | Input/Output |
MCU GPIO |
| 27 | P0.12 | Input/Output |
MCU GPIO |
| 28 | P0.13 | Input/Output |
MCU GPIO |
| 29 | P0.14 | Input/Output |
MCU GPIO |
| 30 | P0.15 | Input/Output |
MCU GPIO |
| 31 | P0.16 | Input/Output |
MCU GPIO |
| 32 | P0.17 | Input/Output |
MCU GPIO |
| 33 | P0.18 | Input/Output |
MCU GPIO |
| 34 | P0.19 | Input/Output |
MCU GPIO |
| 35 | P0.20 | Input/Output |
MCU GPIO |
| 36 | P0.21 | Input/Output/RST |
MCU GPIO |
| 37 | SWDCLK | Input |
MCU GPIO |
| 38 | SWDIO | Input |
MCU GPIO |
| 39 | P0.22 | Input/Output |
MCU GPIO |
| 40 | P0.23 | Input/Output |
MCU GPIO |
| 41 | P0.24 | Input/Output |
MCU GPIO |
| 42 | GND | Input |
Ground electrode, connect to power reference ground |
| 43 | GND | Input |
Ground electrode, connect to power reference ground |
