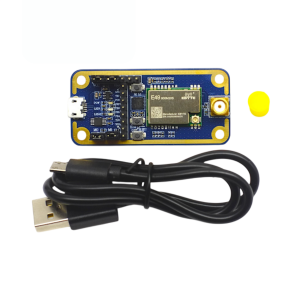

E49-900MBL-01 CMT2300A Test Kit
559,00 TL + KDV
Kategori
Stok Kodu
S142
Fiyat
559,00 TL + KDV
KDV Dahil Fiyat
670,80 TL
| Pin serial number | Definition | Function description |
| 1 | VCC | The module power supply pin needs to be shorted to the module with pin 2 |
| 2 | 3.3V | 3.3V electrical lead pin |
| 3 | 3.3V | 3.3V electrical lead pin |
| 4 | SAW | The MCU power supply pin needs to be shorted to the MCU power supply pin No. 3 |
| 5 | GND | Base plate reference site |
| 6 | REST | MCU external reset pin |
| 7 | SWIM | MCU's SWIM pin |
| 8 | VI0 | MCU power supply pin |
| 9 | PC0 | - |
| 10 | PB7 | - |
| 11 | PB6 | - |
| 12 | PB5 | - |
| 13 | PB4 | - |
| 14 | TXD | MCU serial port TXD |
| 15 | RXD | MCU serial port RXD |
| 16 | M1 | Module mode switching pin (see module product manual for details). |
| 17 | GND | Base plate reference site |
| 18 | M0 | Module mode switching pin (see module product manual for details). |
| 19 | GND | Base plate reference site |
