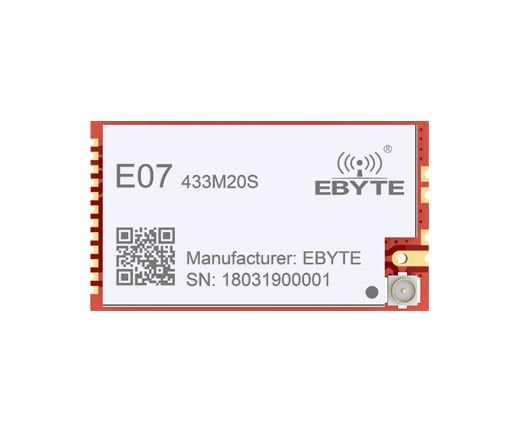

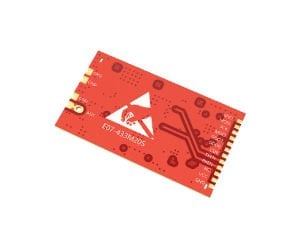

Ebyte E07-433M20S CC1101 2km
| RF Parameter | Value |
Remark |
| Working frequency |
425~450.5 MHz |
Default: 433MHz (26MHz oscillator) |
| Transmitting power | 20 dBm |
Max. Power (100mW) |
| Receiving sensitivity |
-109 dBm |
Air data rate: 0.6kbps |
| Air data rate | 0.6k~500kbps |
Default: 0.6kbps |
| Test distance | 2000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 0.6kbps |
| Hardware Parameter | Value |
Remark |
|
Size |
18 * 32 mm |
|
|
Antenna type |
Stamp hole / IPEX |
|
|
Communication interface |
SPI |
|
|
Package |
SMD |
|
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
2.1 | 3.3 | 3.6 | V | |
| Communication level | 2.1 | 3.3 | 3.6 | V | |
| Transmitting current |
90 | 100 | 110 | mA | 20dBm（100mW） |
| Receiving current |
18 |
20 | 22 | mA |
|
| Sleep current |
1.4 |
2.0 | 2.2 | μA | |
| Operating temperature |
-40 | 20 |
+85 | ℃ | |
| Operating humidity |
10 | 60 |
90 | % | |
| Storage temperature |
-40 | 20 |
+125 | ℃ |
| Pin No |
Pin Item | Pin Direction | Pin Application |
| 1 | GND | - |
Ground, connecting to power ground reference |
| 2 | MOSI | Input |
SPI data input pin |
| 3 | SCK | Input |
SPI clock pin |
| 4 | MISO/GDO1 | Output |
SPI data output pin |
| 5 | GDO2 | Output |
Information output pin |
| 6 | GDO0 | Output |
Information output pin |
| 7 | CSN | Output |
Chip selection pin, for starting a SPI communication |
| 8 | TX_EN | Input |
TX control pin |
| 9 | RX_EN | Input |
RX control pin |
| 10 | NC | - |
N/A |
| 11 | VCC | - |
Power supply 1.8 V-3.6V DC |
| 12 | GND | - |
Ground, connecting to power ground reference |
| 13 | ANT | - |
Antenna |
| 14 | GND | - |
Ground, connecting to power ground reference |
| 15 | GND | - |
Ground, connecting to power ground reference |
| 16 | GND | - |
Ground, connecting to power ground reference |
