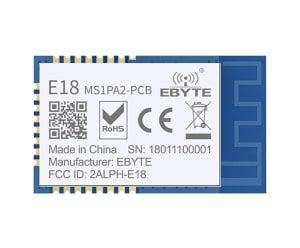

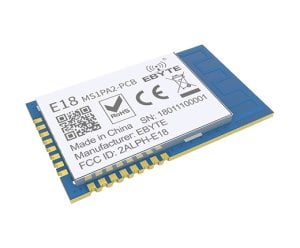

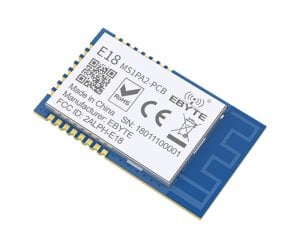

EBYTE E18-MS1PA2-PCB 2.4 Ghz Lora Modül 800metre
387,00 TL + KDV
Kategori
Stok Kodu
T18
Fiyat
387,00 TL + KDV
KDV Dahil Fiyat
464,40 TL
Operating parameter
| Main Parameters | Value | Remarks | ||
| Min. | Typical | Max | ||
| Operating voltage（V） | 2.0 | 3.3 | 3.6 | ≥3.3 V ensures output power |
| Communication level（V） | - | 3.3 | - | For 5V TTL, it may be at risk of burning down |
| Operating temperature（℃） | -40 | - | 85 | Industrial design |
| Operating frequency（MHz） | 2.400 | - | 2.480 | ISM band |
| TX Current(mA) | - | 98 | - | Instant power consumption |
| RX current（mA） | - | 36 | - | - |
| Sleep current（μA） | - | 2 | - | Shut down by software |
| Max Tx power（dBm） | 19.6 | 20 | 20.5 | - |
| Receiving sensitivity（dBm） | -99 | -98 | -97 | Air data rate is 250 kbps |
| Main parameter | Description | Remarks |
| Reference distance | 800m | Test condition: clear and open area, antennna gain: 5dBi,antenna height: 2.5m, aur data rate: 250kbps |
| Protocol | ZigBee | - |
| Communication interface | I/O | All IO ports lead out |
| Package | SMD | - |
| Interface | 1.27mm | - |
| IC | CC2530F256RHAT/QFN40 | Built-in PA+LNA |
| FLASH | 256KB | - |
| RAM | 8KB | - |
| Core | 8051 | - |
| Size | 16*27mm | - |
| Antenna | PCB | 50 ohm impedance |
| 序号 |
引脚 | 引脚方向 | 备注 |
| 1 | GND |
Input | Ground, connecting to power supply reference ground |
| 2 | VDD | Input | Power supply, must be 2.0-3.6V |
| 3 | P2.2 | Input /Output |
MCU GPIO |
| 4 | P2.1 | Input /Output |
MCU GPIO |
| 5 | P2.0 | Input /Output |
MCU GPIO |
| 6 | P1.7 | Input /Output | MCU GPIO |
| 7 | P1.6 | Input /Output | MCU GPIO |
| 8 | NC | - | N.C. |
| 9 | NC | - | N.C. |
| 10 | P1.5 | Input /Output | MCU GPIO |
| 11 | P1.4 | Input /Output | MCU GPIO |
| 12 | P1.3 | Input /Output | MCU GPIO |
| 13 | P1.2 | Input /Output | MCU GPIO |
| 14 | P1.1 | Output | MCU GPIO，PA transmission control pin |
| 15 | P1.0 | Output | MCU GPIO，PA receiving control pin |
| 16 | P0.7 | Input /Output | MCU GPIO |
| 17 | P0.6 | Input /Output | MCU GPIO |
| 18 | P0.5 | Input /Output | MCU GPIO |
| 19 | P0.4 | Input /Output | MCU GPIO |
| 20 | P0.3 | Input /Output | MCU GPIO |
| 21 | P0.2 | Input /Output | MCU GPIO |
| 22 | P0.1 | Input /Output | MCU GPIO |
| 23 | P0.0 | Input /Output | MCU GPIO |
| 24 | RESET | Input | Reset port |
