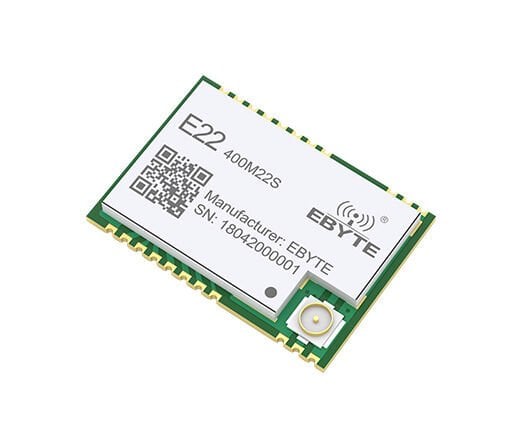

EBYTE E22-400M22S
387,00 TL + KDV
Kategori
Stok Kodu
V192
Fiyat
387,00 TL + KDV
KDV Dahil Fiyat
464,40 TL
| RF Parameter | Value | Remark |
|---|---|---|
| Working frequency | 410~493 MHz | - |
| Transmitting power | 22 dBm | Max. Power (160mW) |
| Receiving sensitivity | -147 dBm | - |
| Air data rate | 0.018k~300kbps | - |
| Test distance | 6500m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m |
| Hardware Parameter | Value | Remark |
|---|---|---|
| Size | 14 * 20 mm | |
| Antenna type | IPEX / Stamp hole | |
| Communication interface | SPI | |
| Package | SMD |
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|
| Power supply | 1.8 | 3.3 | 3.6 | V | |
| Communication level | 1.8 | 3.3 | 3.6 | V | |
| Transmitting current | 95 | 100 | 105 | mA | 22dBm（160mW） |
| Receiving current | 6 | 6.5 | 7 | mA | |
| Sleep current | — | 180 | — | nA | |
| Operating temperature | -40 | 20 | +85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | +125 | ℃ |
