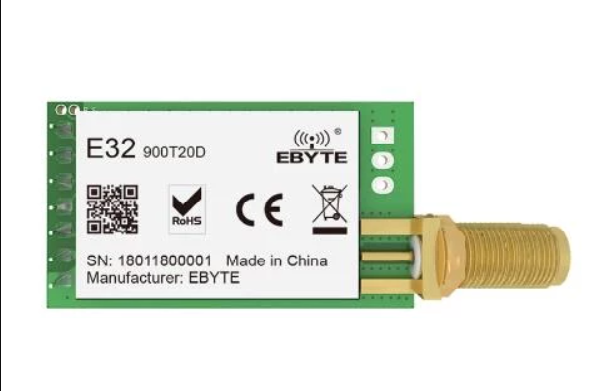

EBYTE Sx1276 900-915 mhz 20DBM E32-900T20D 3KM
|
Marka |
Ebyte |
Entegre |
SX1276 |
|
Model |
E32-915T20D |
Interface |
UART |
|
Güç |
20dBm |
Mesafe |
3000 metre |
|
RF connector |
SMA-K |
Frekans |
915MHz (900-931MHz) |
|
E32-915T20D is a 100mW wireless transceiver module with LoRa spread-spectrum technology, operates at 900~931MHz (Default: 915MHz), based on originally imported RFIC SX1276 from SEMTECH, transparent transmission is available, TTL level. The module adopts LoRa spread-spectrum technology, which means the transmitting distance is much longer than before. The advantages of this module is more concentrated power density and better anti-interference performance. |
|||
|
General parameters |
||
|
Antenna type |
SMA-K |
50Ω characteristic impedance |
|
Operating temperature |
-40 ~ +85℃ |
- |
|
Operating humidity |
10% ~ 90% |
Relative humidity,No condensation |
|
Storage temperature |
-40 ~ +125℃ |
- |
|
Size |
21*36mm |
- |
|
Weight |
6.7g |
Average weight |
|
Connector |
1*7*2.54mm |
Plug-in |
|
Operation Range |
About 3000m |
Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 2.4kbps |
|
Communication interface |
UART |
8N1, 8E1, 8O1,Eight kinds of UART baud rate, from 1200 to 115200 bps |
|
Driving mode |
UART |
Can be configured to push-pull/high pull, open-drain |
|
Transmitting length |
512 bytes buffer |
58 bytes per package |
|
Receiving length |
512 bytes buffer |
58 bytes per package |
|
Electrical parameters |
||
| Frequency Band | 900 - 931MHz |
Default: 915MHz, channel:32 |
| Supply voltage | 2.1 - 5.5V DC |
5V (recommended) |
|
Communication voltage |
Maximum 5.2V |
- |
| Transmitting power | 20dBm |
Can be configured to 20, 17, 14, 10dBm |
| Air data rate | 2.4kbps |
6 optional level(0.3, 1.2, 2.4, 4.8, 9.6, 19.2kbps) |
| Standby current | 3.0uA |
M1=1, M0=1 ( Mode 3 ) |
| Transmitting current | 120mA@20dBm |
≥300mA |
|
Receiving current |
14mA |
Mode 0,Mode 1 |
|
Sensitivity
|
-138dBm/0.3kbps |
Sensitivity has nothing to do with baud rate or timing |
|
PinA No. |
Pin item |
Pin direction |
Pin application |
|
1 |
M0 |
Input |
Work with M1 & decide the four operating modes. |
|
2 |
M1 |
Input |
Work with M0 & decide the four operating modes. |
|
3 |
RXD |
Input |
TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input, see more in parameter setting. |
|
4 |
TXD |
Output |
TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output,see more in parameter setting. |
|
5 |
AUX |
Output |
To indicate module’s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as open-drain output or push-pull output (floating is allowed). |
