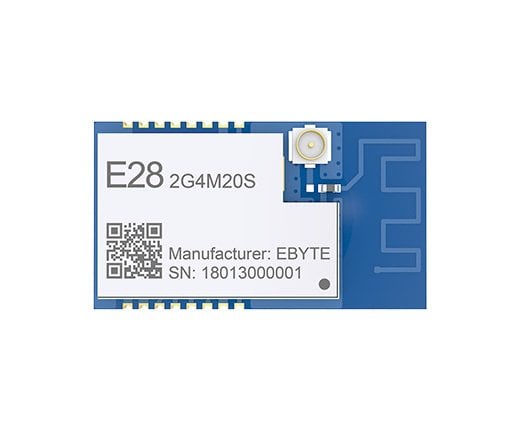

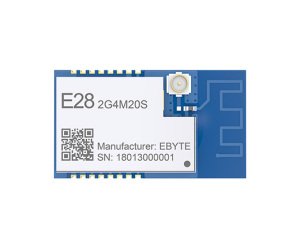

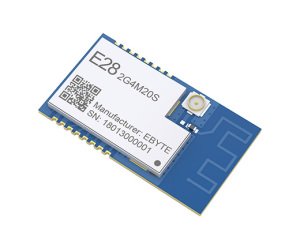

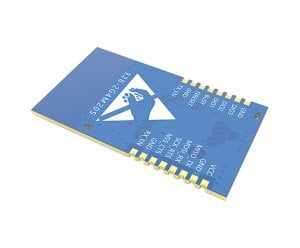

EBYTE Sx1280 E28-2G4M20S 2.4Ghz 20Dbm Lora Modül 6Km
| RF Parameter | Value | Remark |
| Working frequency |
2400~2500 MHz |
Default: 2.4GHz (52MHz oscillator) |
| Transmitting power | 20 dBm |
About 100mW |
| Receiving sensitivity | -132 dBm |
Air data rate: 125kbps |
| Air data rate | 0.125M~2Mbps |
Default: 125kbps |
| Test distance | 6000m |
In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 125kbps |
| Hardware Parameter | Value | Remark |
| Size |
26.5 * 15 mm | |
| Antenna type | IPEX / PCB | |
| Communication interface | SPI |
|
| Package | SMD |
|
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply |
1.8 | 3.3 | 3.6 | V | |
| Communication level | 1.8 | 3.3 | 3.6 | V | |
| Transmitting current |
130 |
140 | 150 | mA | 20dBm（100mW） |
| Receiving current | 9 |
10 | 11 | mA | |
| Sleep current | 1 | 2 | 3 | μA | |
| Operating temperature | -40 | 20 |
+85 | ℃ | |
| Operating humidity | 10 | 60 |
90 | % | |
| Storage temperature | -40 | 20 |
+125 | ℃ |
