Luckfox Pico Max M 256MB RV1106g3

Luckfox Pico Max M 256MB RV1106g3

3.250,00 TL + KDV
Kategori
Bluetooth Modüller
Stok Kodu
T200
Fiyat
3.250,00 TL + KDV
KDV Dahil Fiyat
3.900,00 TL
ÜCRETSİZ KARGO
4000 TL ve Üzeri Tüm Siparişlerinizde Kargo Bedava
HIZLI GÖNDERİM
15:00'a Kadar Verilen Tüm Siparişler Aynı Gün Kargoda
GÜVENLİ ALIŞVERİŞ
Bilgileriniz 256 Bit SSL Sertifikası ile Güvenlik Altında
TAKSİTLİ ALIŞVERİŞ
Tüm Banka Kartlarına 12 Aya Kadar Varan Taksit İmkanı
Ürün Bilgisi
Yorumlar
Taksit Seçenekleri
Önerileriniz
Ürün Bilgisi

Specifications
Processor Cortex A7@1.2GHz
NPU 0.5TOPS, supports int4, int8 and int16
ISP Input 5M @30fps (Max)
Memory Pro: 128MB DDR3L
Max: 256MB DDR3L
USB USB 2.0 Host/Device
Camera MIPI CSI 2-lane
GPIO 26 × GPIO pins
Ethernet port 10/100M Ethernet controller and embedded PHY
Default Storage SPI NAND FLASH (256MB)
Version And Pinheader Options
Highly Integrated And Powerful Performance

Integrates CPU, NPU, ISP And Other Processors

  • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
  • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
  • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
  • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
  • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
  • Integrated with built-in POR, audio codec and MAC PHY
Easier To Develop

Integrates TF Card Slot, Camera Interface And Ethernet Port

SLC NAND FLASH

For A Better User Experience

Application Example
Suitable For More Application Examples
Pin Definition

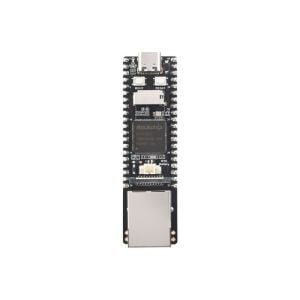

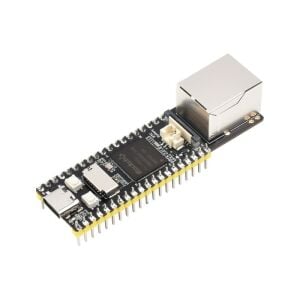

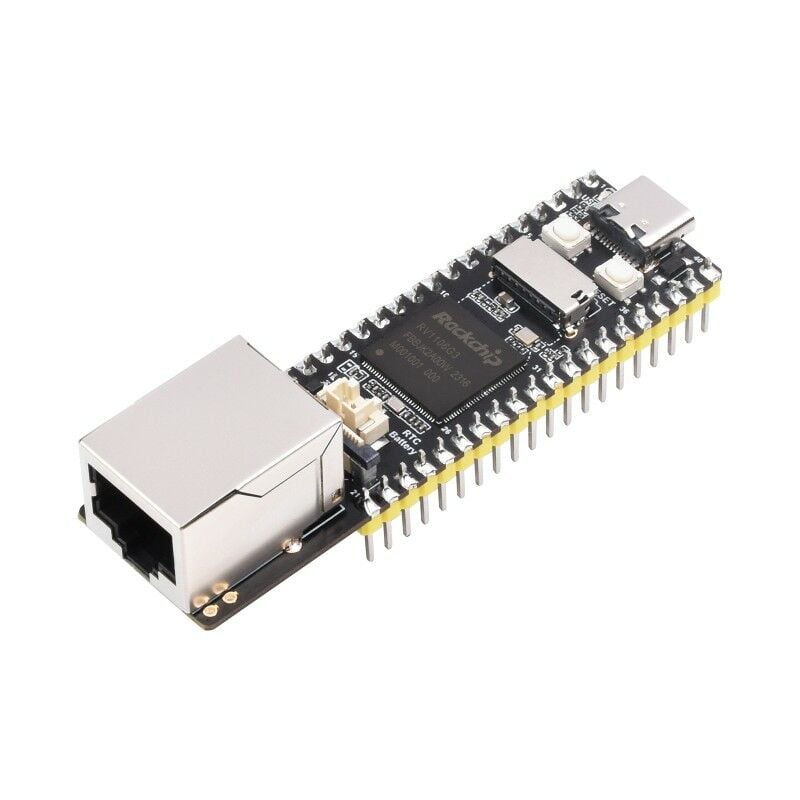

What's On Board
  1. USB Type-C connector
    for power supply and program burning
  2. ACT-LED
  3. BOOT button
    Press it when powering on to enter download mode
  4. RESET button
  5. TF card slot
  6. RV1106
    Vision processor SoC with built-in ARM Cortex-A7 core (RV1106G2 for Pro version, RV1106G3 for Max version)

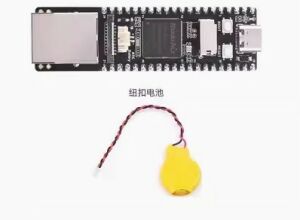

  7. RTC battery header
    MX1.25 connector, for connecting RTC battery

  1. CSI camera interface
    MIPI CSI 2-lane
  2. RJ45 Ethernet port
  3. USB test pads
    TP1: USB_N
    TP2: USB_P
  4. USB detection test pad
  5. W25N02KV
    256MB SLC NAND FLASH
  6. GPIO header
Product Show
Outline Dimensions
